LINEO 1.2

LINEO 1.2 1510mm OPAL 3000K

Cod. LNE02DBK000A00

IdroSkud® protection system

- polarity reversal protection
- voltage spikes protection
- water infiltration protection

Protection class III

Designed to be supplied from a separated extra-low voltage (SELV) power supply

IP 66

Protected against powerful power jets, 100 liters per minute

IP 67

Protected against temporary immersion (30 minutes) up to 1 meter

IK 09

Protected against impact of 10 J

High temperatures

Design to withstand temperatures up to +50° C

Driver-over

Fixture design to withstand a static load up to 20 kN

CX - Extreme

corrosion resistance level ISO 9223

Mizar warranty

5 years warranty

Request information

Special Request

Send your request by filling out the following form: we are committed to responding by providing you with the information you need. Fields marked with (*) are mandatory.

Special Request

Name *

Surname *

E-mail *

Telephone

Company

Occupation Occupation

Address

City

Zip code

Nation

Additional requests

I would like to receive support on a project

I would like to arrange a sales visit

I would like to request a quote on a specific material

Detail your request * *

I consent to the processing of my personal data.

I would like to subscribe to the Mizar Newsletter to receive communications on products, services and events

Captcha

If you are human, leave this field blank.

Technical description

Linear inground luminaire, drive-over, suitable for outdoor environments (IP66/IP67), with operating temperature range: -20°C / +50°C. The body is made of PMMA, transparent and opal on the upper side; the endcaps are made of 316L stainless steel. The light source is LED SMD3014, powered at 24V with built-in driver. The luminous flux makes it ideal for marking pedestrian and driveway paths, or creating light cuts on floors, walls and ceilings. Color rendering index CRI > 80. Lineo is equipped with IdroSkud® system to protect electronic components from voltage spikes, polarity reversal and water infiltration. Installation accessories are provided (floor and plasterboard outercase; cable extensions up to 15 m).

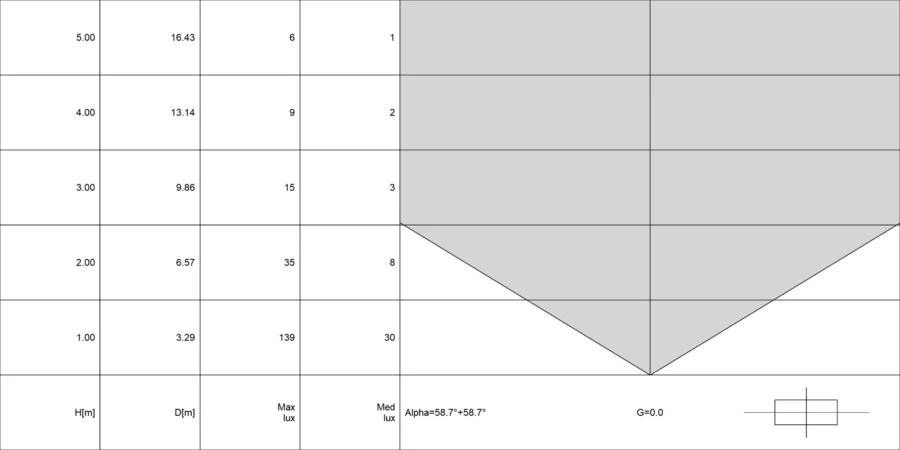

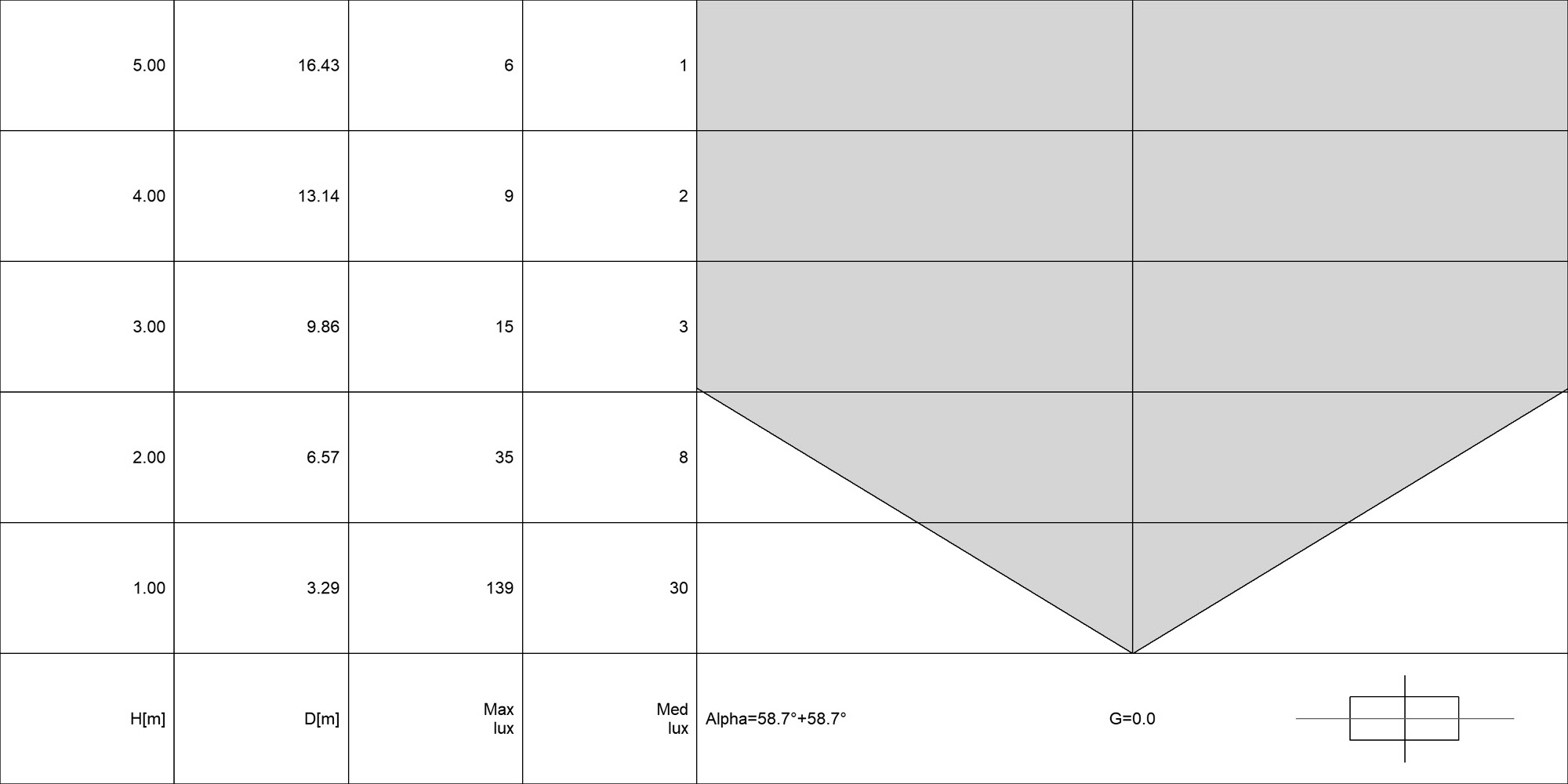

Lighting data

Source type SMD chip 3014
CCT 3000K
CRI > 80
MacAdam (SDCM) 3
Source lumen output (lm) 1980
Luminaire lumen output (lm) 477
Light emission Diffused
Beam angle 120°
Photobiological risk RG0
ULR 100.00%
BUG Rating B0 U1 G0
CIE Flux Code 0 0 0 0 100
LED lifetime L80 B10 50.000h
Efficiency class This product contains a light source of energy efficiency class (EU2019/2015): F

Mechanical data

Width (mm) 27
Length (mm) 1510
Height (mm) 49
Weight (g) 1470
IP Rating IP66 / IP67
IK rating IK10
Finishing colour Opal white
Frame material Stainless steel 316L
Body material Trasparent PMMA
Diffuser material Opal PMMA
Class ISO 9223 CX
Optical optional None
Maximal working temperature +50° C
Minimal working temperature -20° C
Maximal static load (kN) 20
Walk-over Yes
Driver-over Yes
Maximal surface temperature +50° C
Areas EN 60598-2-13 A1 / A2 / A3 / A4

Electrical data

Nominal power (W) 18
Power supply (input power type) Costant voltage - 24V
Ballast Remote
Insulation class III
Dimmable Yes
Connector type M12 - 5 poles IP67
Power cable length 0,4 m
Electrical connection Parallel connection
Idroskud® protection Yes
Inverse polarity protection Yes
Voltage spikes protection Yes
