OCEANO 9.1

OCEANO 9.1 MONO GRAZING 3000K -15M

Cod. CEA16DCR001P00

IdroSkud® protection system

- polarity reversal protection
- voltage spikes protection
- water infiltration protection

Protection class III

Designed to be supplied from a separated extra-low voltage (SELV) power supply

IP 66

Protected against powerful power jets, 100 liters per minute

IP 68 up to 10m

Protected against continous immersion up to 10 meters

IK 09

Protected against impact of 10 J

High temperatures

Design to withstand temperatures up to +50° C

Driver-over

Fixture design to withstand a static load up to 20 kN

CX - Extreme

corrosion resistance level ISO 9223

Mizar warranty

5 years warranty

Request information

Special Request

Send your request by filling out the following form: we are committed to responding by providing you with the information you need. Fields marked with (*) are mandatory.

Special Request

Name *

Surname *

E-mail *

Telephone

Company

Occupation Occupation

Address

City

Zip code

Nation

Additional requests

I would like to receive support on a project

I would like to arrange a sales visit

I would like to request a quote on a specific material

Detail your request * *

I consent to the processing of my personal data.

I would like to subscribe to the Mizar Newsletter to receive communications on products, services and events

Captcha

If you are human, leave this field blank.

Technical description

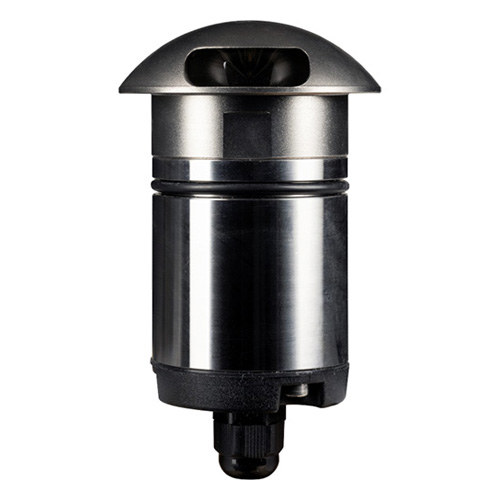

Inground luminaire, walk-over, suitable for outdoor and underwater environments up to 10 m (IP66/IP68), with operating temperature range: -20°C / +50°C. The light source consists of a single 3W power Led chip powered at 24V constant voltage with integrated driver. The various angles of grazing emission make it ideal for marking pedestrian paths or illuminating. The source is set back for greater visual comfort. Color rendering index CRI > 90. Oceano is equipped with IdroSkud® system to protect electronic components from voltage spikes, polarity reversal and water infiltration. Installation accessories (draining and waterproof outercase) are provided.

Lighting data

Source type single chip power LED
CCT 3000K
CRI > 90
MacAdam (SDCM) 2
Source lumen output (lm) 236
Luminaire lumen output (lm) 27

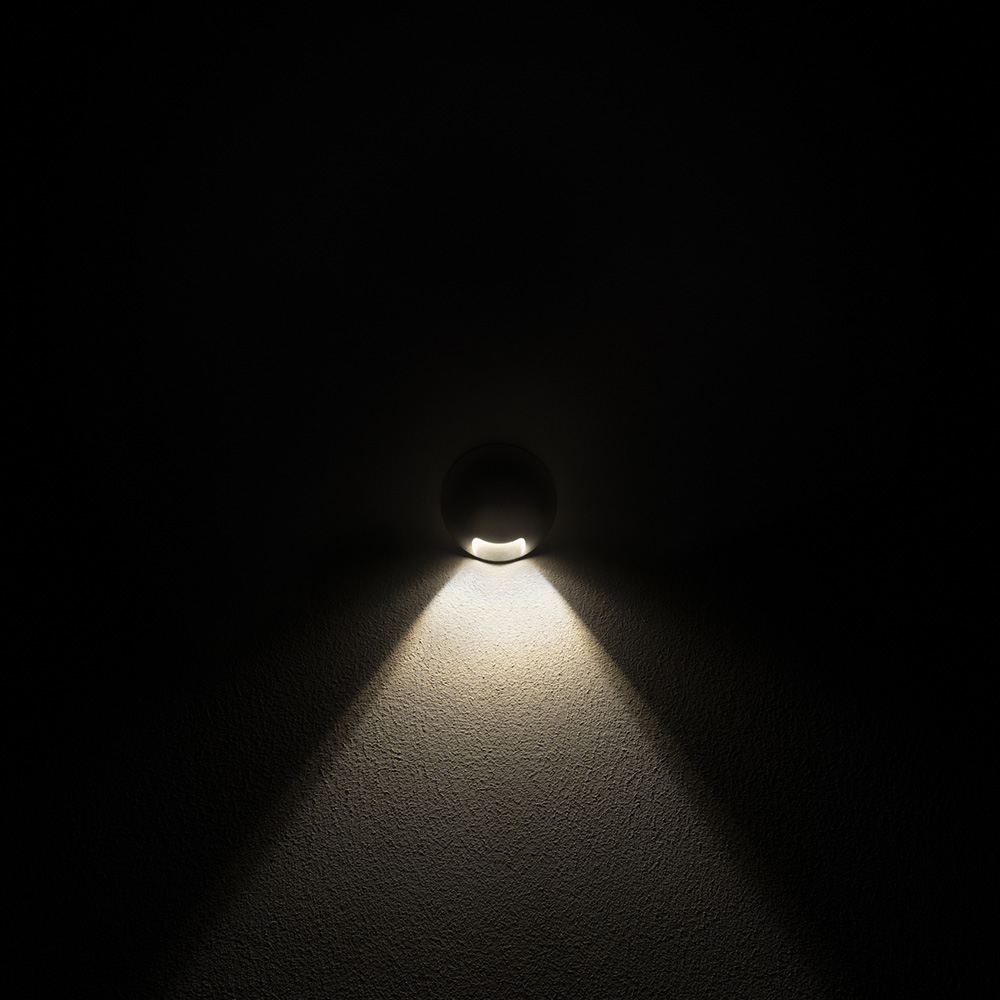

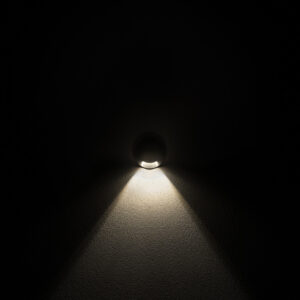

Light emission Single grazing
Beam angle 30° x 1
Photobiological risk RG0
ULR 81.00%
BUG Rating B0 U1 G0
CIE Flux Code 0 0 0 0 100
LED lifetime L80 B10 50.000h
Efficiency class This product contains a light source of energy efficiency class (EU2019/2015): F

Mechanical data

Height (mm) 105
Weight (g) 673
IP Rating IP66 / IP68 10m
IK rating IK10
Shape Round
Finishing colour Steel / Steel
Frame material Stainless steel 316L
Body material Stainless steel 316L
Class ISO 9223 CX
Optic type Optical silicone
Optical optional None
Maximal working temperature +50° C
Minimal working temperature -20° C
Maximal static load (kN) 5
Walk-over Yes
Driver-over No
Maximal surface temperature +50° C
Areas EN 60598-2-13 A1 / A2

Electrical data

Nominal power (W) 3
Power supply (input power type) Costant voltage - 24V
Ballast Remote
Insulation class III
Dimmable Yes
Power cable type H05RN - F 2x0,75 mm²
Power cable length 15 m (verify voltage drop)
Electrical connection Parallel connection
Idroskud® protection Yes
Inverse polarity protection Yes
Voltage spikes protection Yes
