Technical description
Floodlight suitable for outdoor and underwater environments up to 10 m (IP66/IP68), with operating temperature range: -20°C / +50°C. To offer maximum versatility of application, the body can be made of aluminum or steel; the bracket, made of steel for both models, allows the fixture's tilt to be adjusted. The light source consists of a single 3W power Led chip powered at 24V constant voltage with integrated driver. The luminous flux makes it ideal for illuminating architectural details, garden plants or water features, thanks to the different emission angles. The source is set back for greater visual comfort. Color rendering index CRI > 90. Oceano is equipped with IdroSkud® system to protect electronic components from voltage spikes, polarity reversal and water infiltration. Optional for anti-glare (honeycomb) and accessory for installation in the ground (stake) are provided.
Lighting data
Source type
single chip power LED
|
CCT
2700K
|
CRI
> 90
|
MacAdam (SDCM)
2
|
Source lumen output (lm)
236
|
Luminaire lumen output (lm)
136
|
Light emission
Narrow
|
Beam angle
10°
|
Photobiological risk
RG0
|
ULR
0.00%
|
BUG Rating
B0 U1 G0
|
CIE Flux Code
0 0 0 0 100
|
LED lifetime
L80 B10 50.000h
|
Efficiency class
This product contains a light source of energy efficiency class (EU2019/2015): F
|
Mechanical data
Width (mm)
57
|
Length (mm)
93
|
Height (mm)
83
|
Weight (g)
629
|
IP Rating
IP66 / IP68 10m
|
IK rating
IK10
|
Finishing colour
Steel / Steel
|
Frame material
Stainless steel 316L
|
Body material
Stainless steel 316L
|
External screws material
Stainless steel 316L (A4)
|
Diffuser material
Extraclear tempered glass
|
Diffuser thickness (mm)
8
|
Class ISO 9223
CX
|
Optic type
Technopolymer TIR Lens
|
Optical optional
Honeycomb
|
Maximal working temperature
+50° C
|
Minimal working temperature
-20° C
|
Electrical data
Nominal power (W)
3
|
Power supply (input power type)
Costant voltage - 24V
|
Ballast
Remote
|
Insulation class
III
|
Dimmable
Yes
|
Power cable type
H05RN - F 2x0,75 mm²
|
Power cable length
15 m (verify voltage drop) 15 m (check voltage drop)
|
Electrical connection
Parallel connection
|
Idroskud® protection
Yes
|
Inverse polarity protection
Yes
|
Voltage spikes protection
Yes
|
Marks

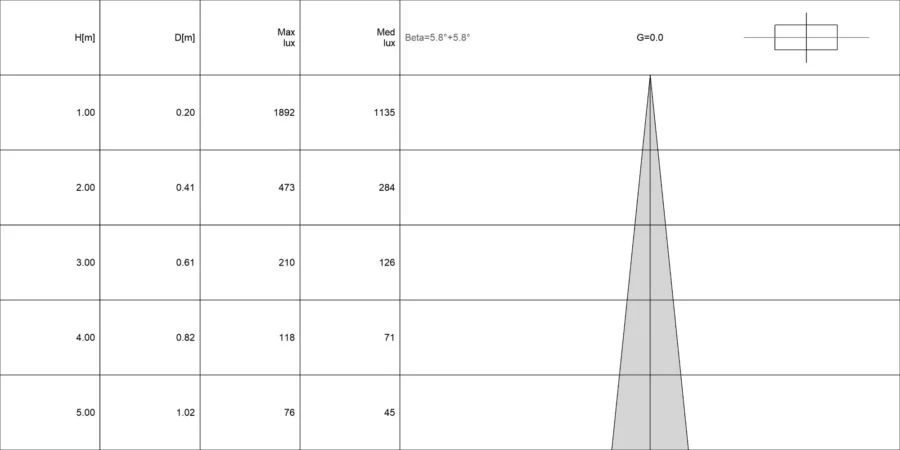

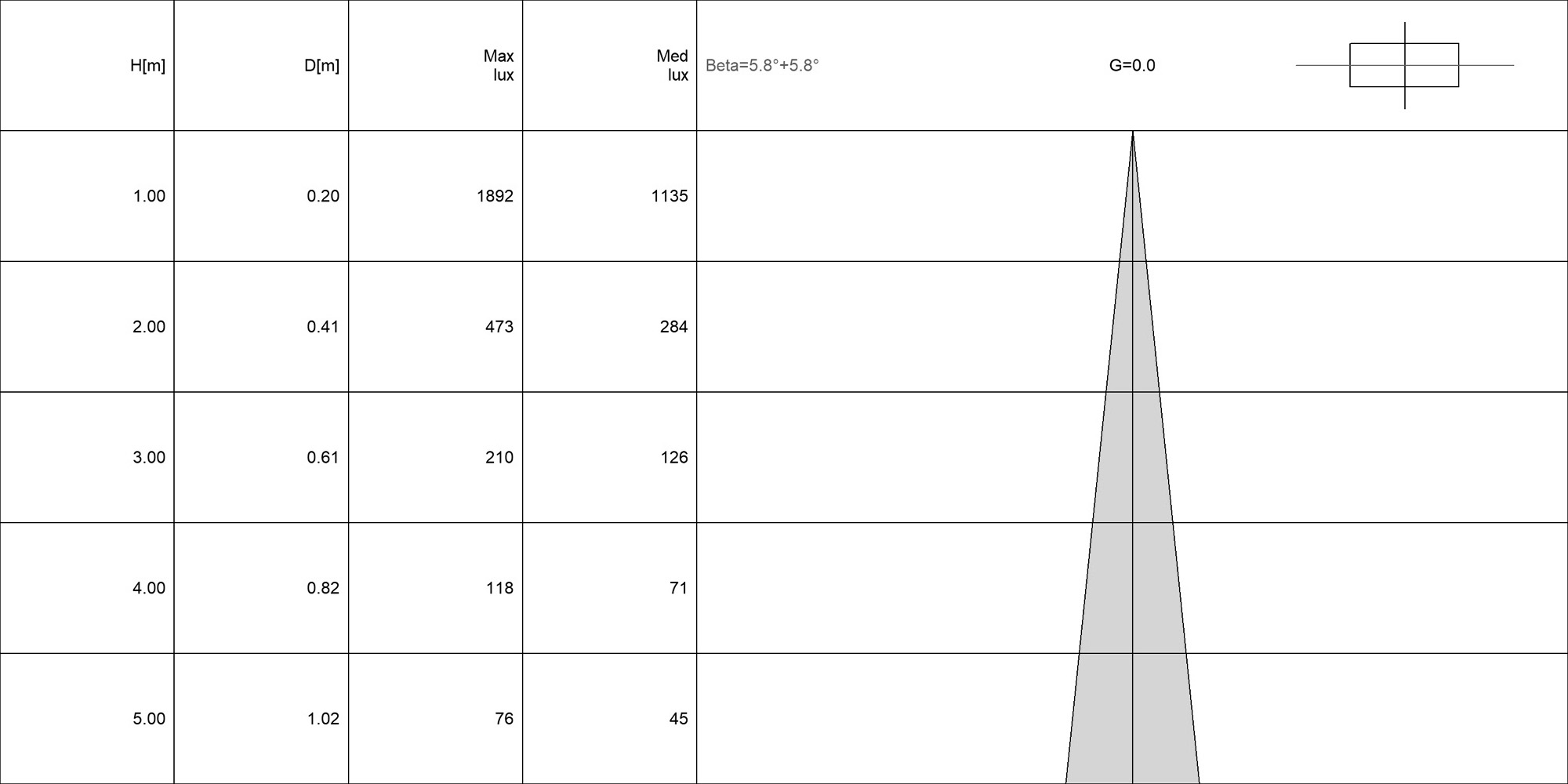

Photometry
