NOT DIMMABLE POWER SUPPLY

Power supply DC 5-44V 700mA 30W max

Cod. MID0022

IP 20

Protected from solid bodies larger than 12 mm

Protection class II

Double insulated electrical appliance

High temperatures

Design to withstand temperatures up to +50° C

Request information

Special Request

Send your request by filling out the following form: we are committed to responding by providing you with the information you need. Fields marked with (*) are mandatory.

Special Request

Name *

Surname *

E-mail *

Telephone

Company

Occupation Occupation

Address

City

Zip code

Nation

Additional requests

I would like to receive support on a project

I would like to arrange a sales visit

I would like to request a quote on a specific material

Detail your request * *

I consent to the processing of my personal data.

I would like to subscribe to the Mizar Newsletter to receive communications on products, services and events

Captcha

If you are human, leave this field blank.

Technical description

Brand: TCI - Model: PRO FLAT 30/700 cod. 127118 - Power supply DC 5-44V 700mA 30W max

Mechanical data

Width (mm) 43,5
Length (mm) 146,5
Height (mm) 22
IP Rating IP 20
Maximal working temperature +50° C
Minimal working temperature -20° C

Electrical data

Nominal power (W) 30
Power supply (input power type) 220/240 V 50/60 Hz
Dimmable No

Marks

https://www.mizar.it/mizar-assets/marchi/CEE.svg

https://www.mizar.it/mizar-assets/marchi/UKCA.svg

https://www.mizar.it/mizar-assets/marchi/RAEE.svg

https://www.mizar.it/mizar-assets/marchi/RoHS.svg

https://www.mizar.it/mizar-assets/marchi/ReplByProf3.svg

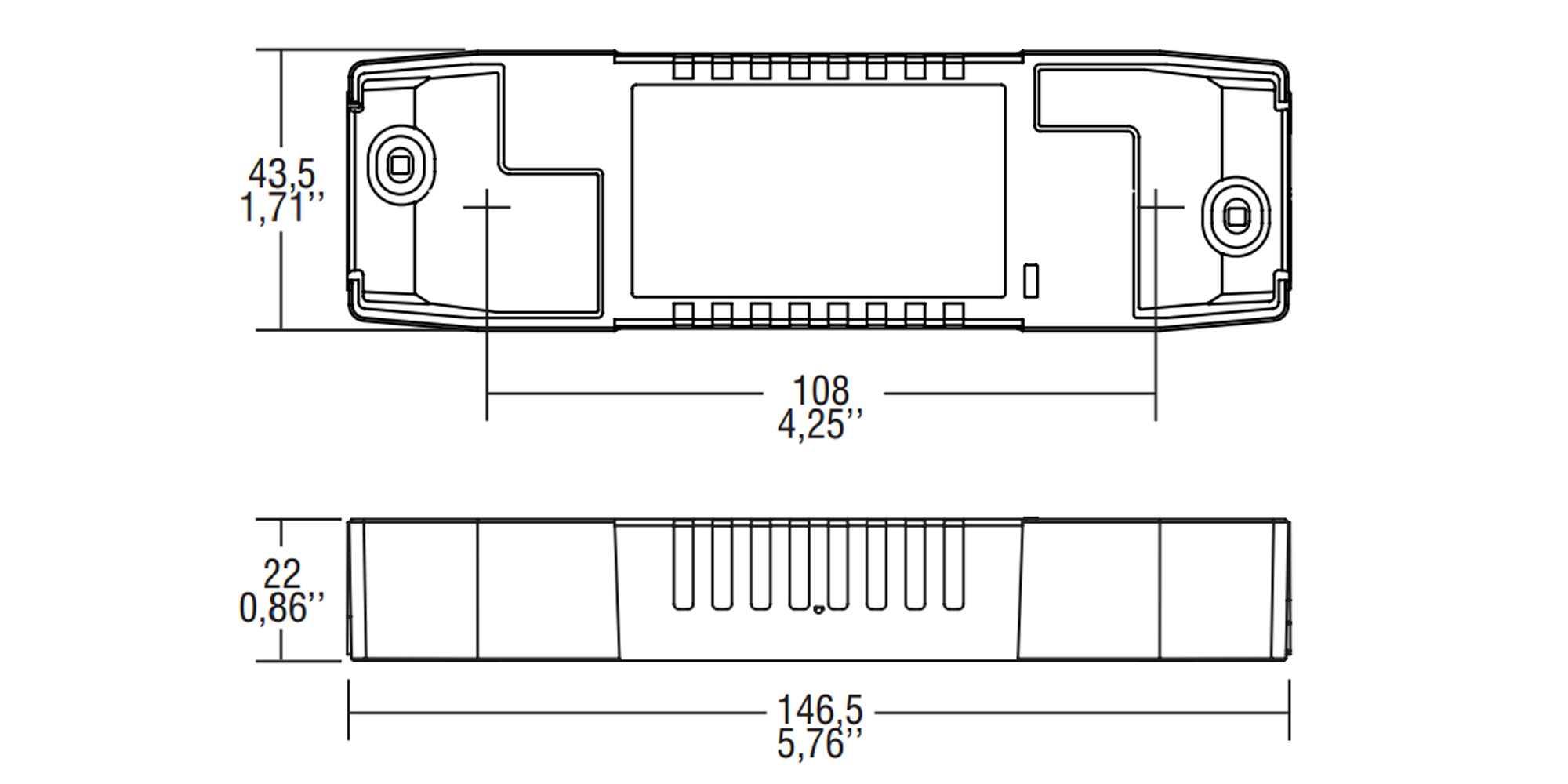

Technical drawing

https://www.mizar.it/mizar-assets/disegni-tecnici/MID0022_CAD.png

Documentation

Data sheet

.pdf

Instruction sheet
