LUCIS 1.1

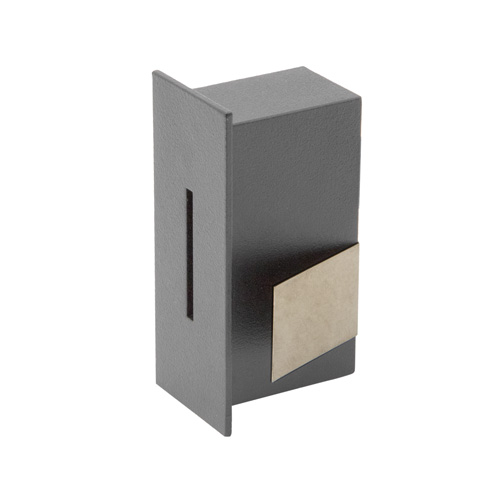

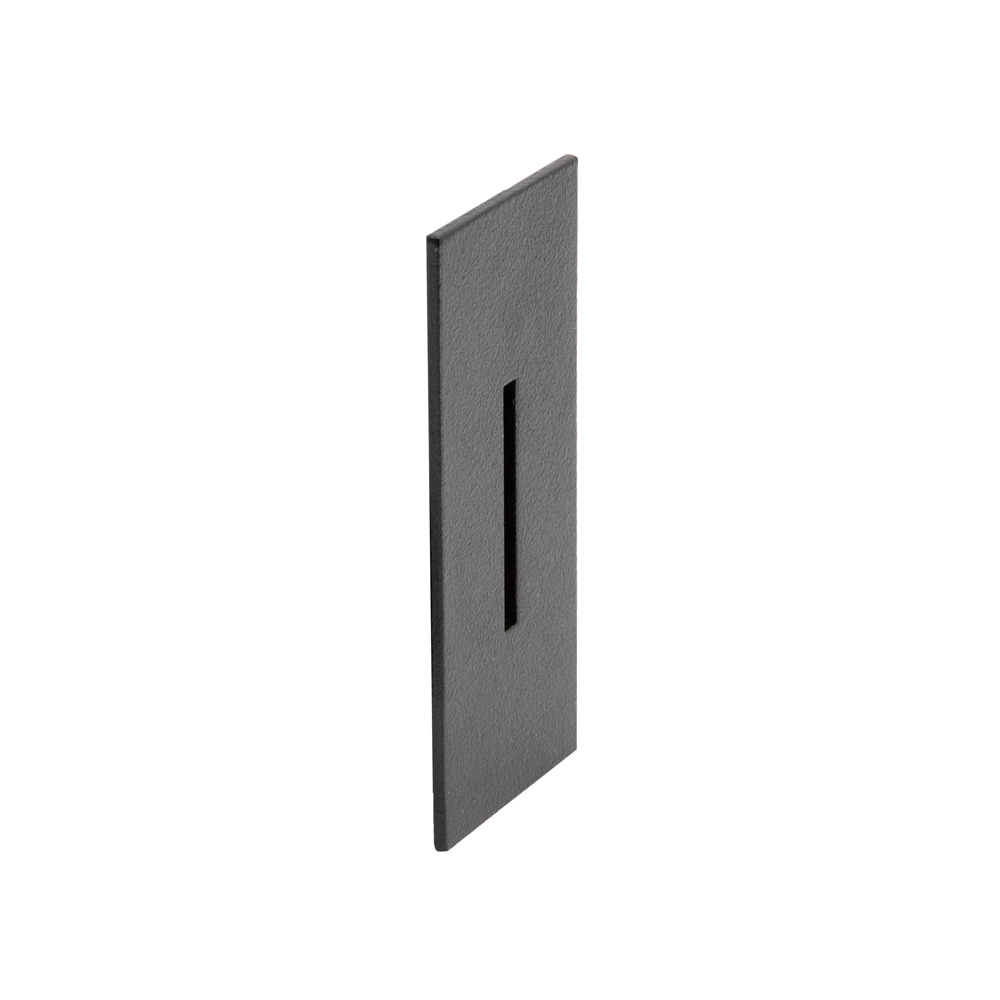

LUCIS 1.1 BLADE RECTANGULAR 2700K ANTHRACITE RAL7016

Cod. LUC01CCZ0G0A00

IdroSkud® protection system

- polarity reversal protection
- voltage spikes protection
- water infiltration protection

Protection class III

Designed to be supplied from a separated extra-low voltage (SELV) power supply

IP 66

Protected against powerful power jets, 100 liters per minute

IP 67

Protected against temporary immersion (30 minutes) up to 1 meter

IK 10

Protected against impact of 20 J

High temperatures

Design to withstand temperatures up to +50° C

C5 - Very high

corrosion resistance level ISO 9223

Mizar warranty

5 years warranty

Request information

Richieste Speciali

Invia la tua richiesta compilando il seguente form: ci impegniamo a rispondere fornendoti le informazioni di cui hai bisogno.
I campi contrassegnati da (*) sono obbligatori.

Richieste Speciali

Nome *

Cognome *

E-mail *

Telefono

Azienda

Professione Professione

Indirizzo

Città

CAP

Nazionalità

Richieste aggiuntive

Desidero ricevere supporto su un progetto

Desidero fissare una visita commerciale

Desidero richiedere una quotazione su un materiale specifico

Dettaglia la tua richiesta * *

Acconsento al trattamento dei miei dati personali.

Desidero iscrivermi alla Newsletter Mizar per ricevere comunicazioni su prodotti, servizi ed eventi

Captcha

If you are human, leave this field blank.

Technical description

Wall-recessed fixture, suitable for outdoor environments (IP66/IP67), with wide operating temperature range: -20°C / +50°C. The body is made of aluminum protected by polyester epoxy paint to ensure corrosion resistance of 1500 hours in salt spray test. The light source consists of a single 2W power Led chip powered at 24V, constant voltage with integrated driver. The rectangular bezel has a blade-shaped opening to obtain a narrow linear light beam oriented toward the floor. The luminous flux and design make it ideal as a walkway marker light for footpaths or flights of stairs. Color rendering index CRI > 90. The Lucis is equipped with IdroSkud® system to protect electronic components from voltage spikes, polarity reversal and water infiltration. Installation accessories are provided (wall and exterior insulation coating outercase).

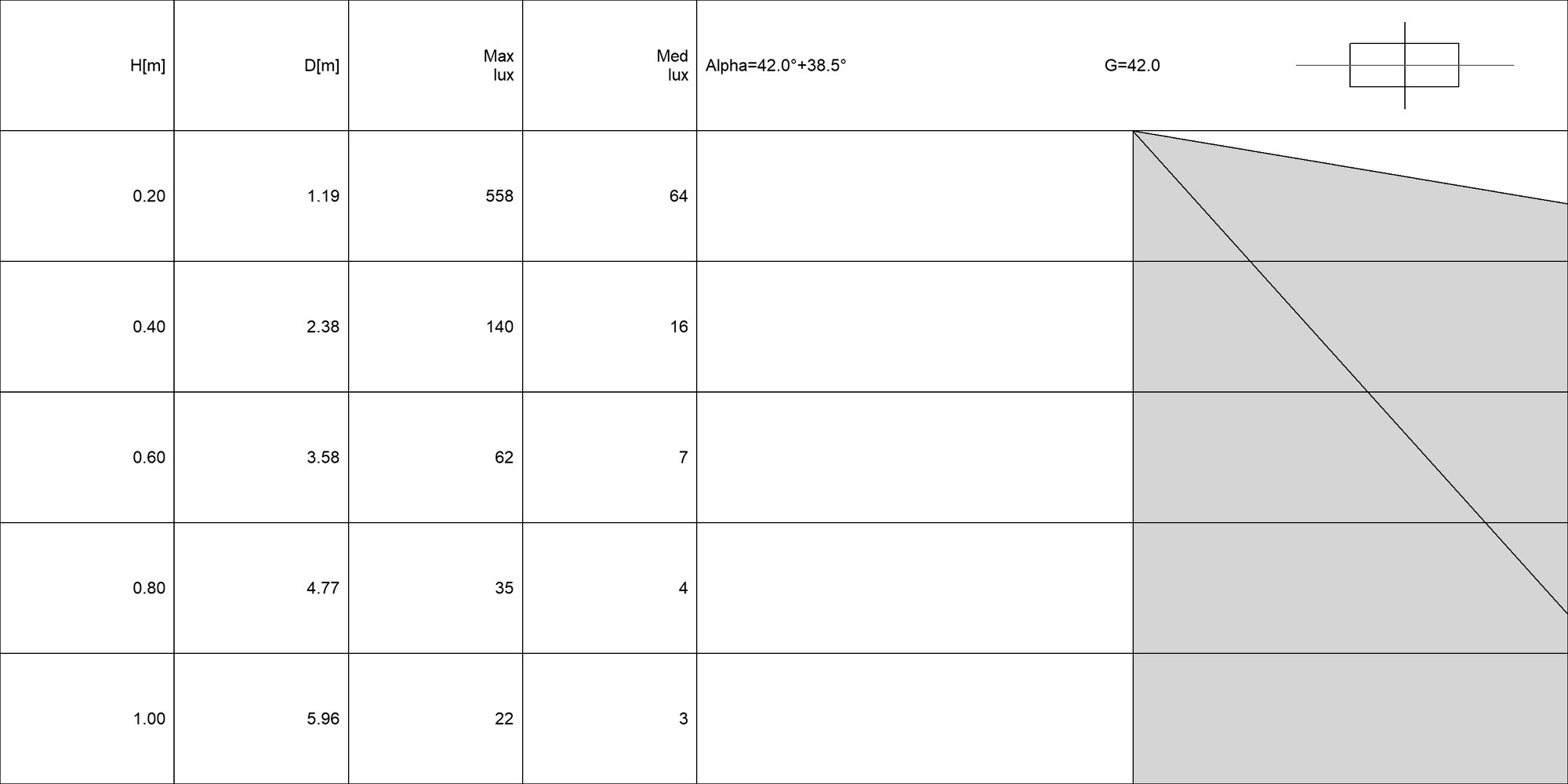

Lighting data

Source type single chip power LED
CCT 2700K
CRI > 90
MacAdam (SDCM) 3
Source lumen output (lm) 157
Luminaire lumen output (lm) 16
Light emission Blade
Beam angle 10°
Photobiological risk RG0
ULR 100.00%
BUG Rating B0 U1 G0
CIE Flux Code 0 0 0 0 100
LED lifetime L80 B10 50.000h
Efficiency class This product contains a light source of energy efficiency class (EU2019/2015): F

Mechanical data

Width (mm) 30
Length (mm) 51
Height (mm) 74
Weight (g) 169
IP Rating IP66 / IP67
IK rating IK10
Type of finishing Protective primer followed by epoxy and polyester paint
Finishing colour Anthracite RAL7016
Body material Anodized aluminum anticorodal 6082
External screws material Stainless steel 316L (A4)
Diffuser material Polyurethane resin
Class ISO 9223 C5
Optical optional None
Maximal working temperature +50° C
Minimal working temperature -20° C

Electrical data

Nominal power (W) 2
Power supply (input power type) Costant voltage - 24V
Ballast Remote
Insulation class III
Dimmable Yes
Power cable type FR5FOEM7 - AD8 2x0,5 mm²
Power cable length 0,4 m
Electrical connection Parallel connection
Idroskud® protection Yes
Inverse polarity protection Yes
Voltage spikes protection Yes
