DIMMABLE POWER SUPPLY

Power supply DC 24V 200W 5A IP67 DALI2/PWM

Cod. MID0031

IP 67

Protected against temporary immersion (30 minutes) up to 1 meter

Protection class II

Double insulated electrical appliance

High temperatures

Design to withstand temperatures up to +50° C

Request information

Special Request

Send your request by filling out the following form: we are committed to responding by providing you with the information you need. Fields marked with (*) are mandatory.

Special Request

Name *

Surname *

E-mail *

Telephone

Company

Occupation Occupation

Address

City

Zip code

Nation

Additional requests

I would like to receive support on a project

I would like to arrange a sales visit

I would like to request a quote on a specific material

Detail your request * *

I consent to the processing of my personal data.

I would like to subscribe to the Mizar Newsletter to receive communications on products, services and events

Captcha

If you are human, leave this field blank.

Technical description

Brand: MEANWELL - Model: ETPWM20024DA2 - Power supply DC 24V 200W 5A IP67 DALI2/PWM

Mechanical data

Width (mm) 68
Length (mm) 195
Height (mm) 39,5
IP Rating IP 67
Maximal working temperature +50° C
Minimal working temperature -20° C

Electrical data

Nominal power (W) 200
Power supply (input power type) 220/240 V 50/60 Hz
Dimmable Yes (DALI)

Marks

https://www.mizar.it/mizar-assets/marchi/CEE.svg

https://www.mizar.it/mizar-assets/marchi/UKCA.svg

https://www.mizar.it/mizar-assets/marchi/RAEE.svg

https://www.mizar.it/mizar-assets/marchi/RoHS.svg

https://www.mizar.it/mizar-assets/marchi/ReplByProf3.svg

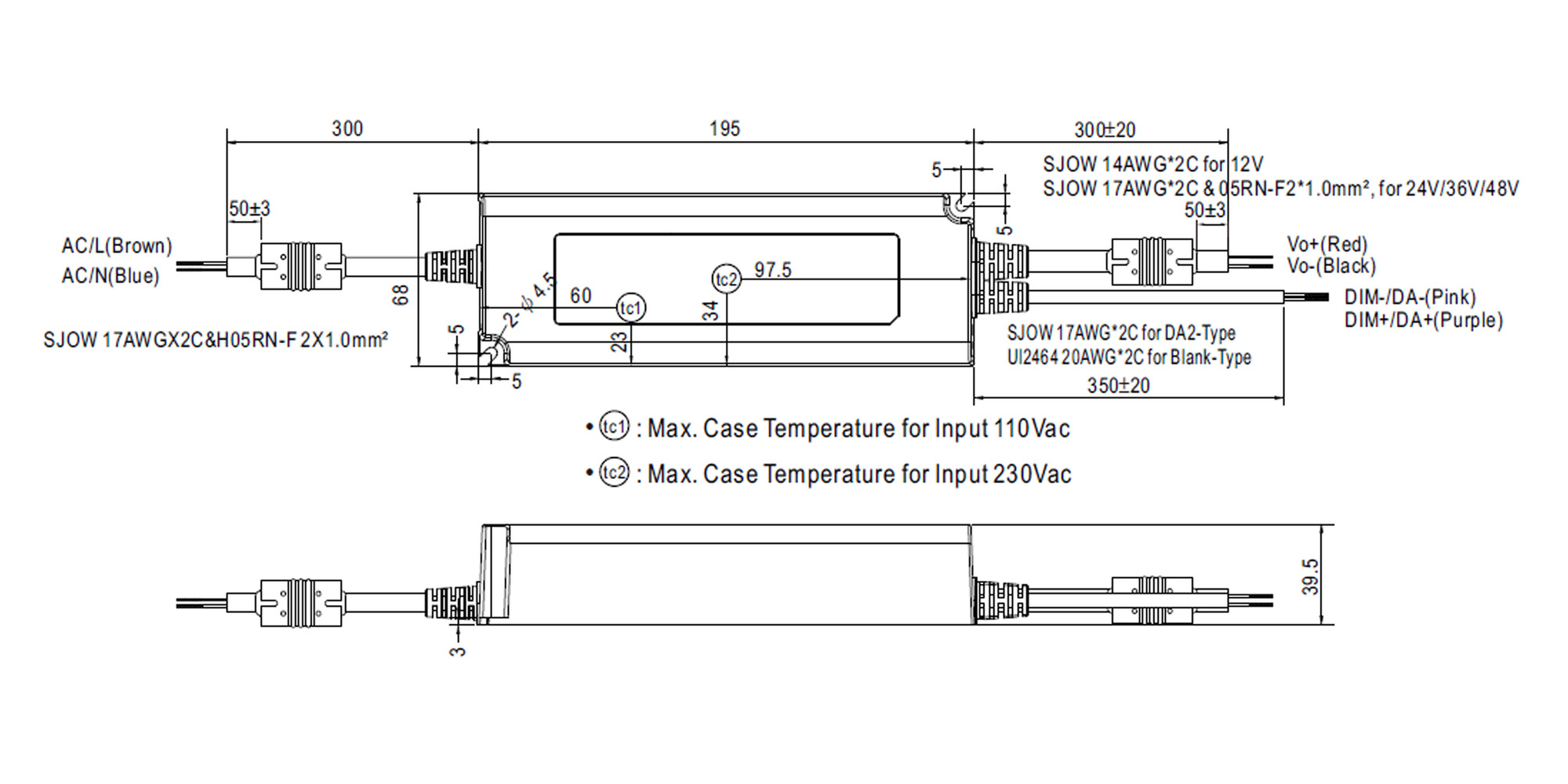

Technical drawing

https://www.mizar.it/mizar-assets/disegni-tecnici/MID0031_CAD.png

Documentation

Data sheet

.pdf

Instruction sheet
