DIMMABLE POWER SUPPLY

Power supply DC 10-54V 1.5/38W 150-1050mA IP20 DALI/NFC

Cod. MID0025

Choose a wishlist or Create a new list

Add to wishlist

IP 20

Protected from solid bodies larger than 12 mm

Protection class II

Double insulated electrical appliance

High temperatures

Design to withstand temperatures up to +50° C

Special Request

Send your request by filling out the following form: we are committed to responding by providing you with the information you need. Fields marked with (*) are mandatory.


Special Request
Additional requests

Technical description
Brand: TCI - Model: TCI PRO FLAT 38 DALI NFC - Power supply DC 10-54V 1.5/38W 150-1050mA IP20 DALI/NFC
Mechanical data
Width (mm)
43,5
Length (mm)
146,5
Height (mm)
22
IP Rating
IP 20
Maximal working temperature
+50° C
Minimal working temperature
-20° C
Electrical data
Nominal power (W)
38
Power supply (input power type)
220/240 V 50/60 Hz
Dimmable
Yes (DALI)
Marks
https://www.mizar.it/mizar-assets/marchi/CEE.svg https://www.mizar.it/mizar-assets/marchi/UKCA.svg https://www.mizar.it/mizar-assets/marchi/RAEE.svg https://www.mizar.it/mizar-assets/marchi/RoHS.svg https://www.mizar.it/mizar-assets/marchi/ReplByProf3.svg

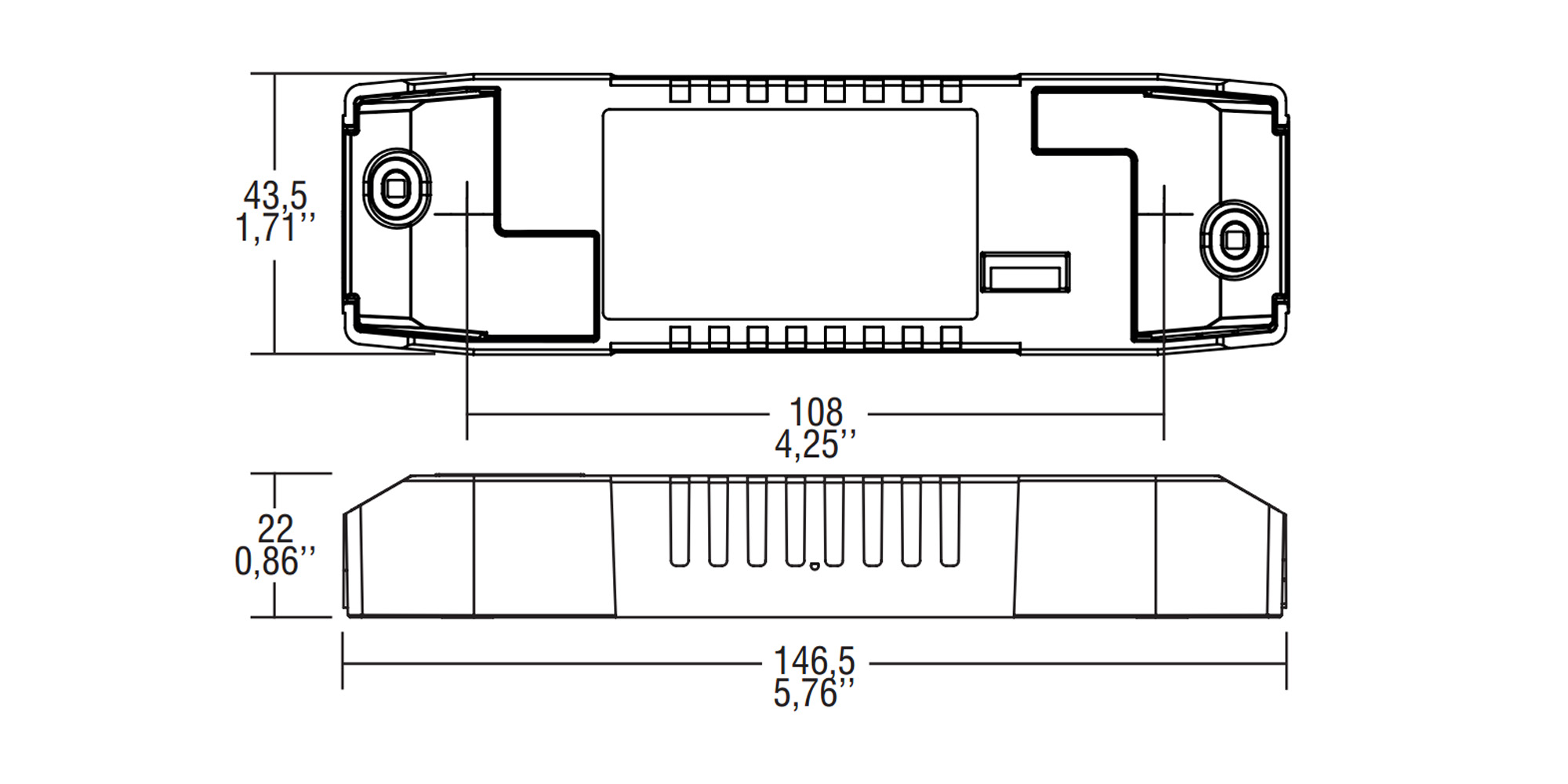

Technical drawing
https://www.mizar.it/mizar-assets/disegni-tecnici/MID0025_CAD.png
