ACUS 1.0

ACUS 1.0 WITH LENS 14° 3000K HONEYCOMB

Cod. ACU00DCS200Z00

IdroSkud® protection system

- polarity reversal protection
- voltage spikes protection
- water infiltration protection

Protection class III

Designed to be supplied from a separated extra-low voltage (SELV) power supply

IP 66

Protected against powerful power jets, 100 liters per minute

IP 67

Protected against temporary immersion (30 minutes) up to 1 meter

IK 10

Protected against impact of 20 J

High temperatures

Design to withstand temperatures up to +50° C

Driver-over

Fixture design to withstand a static load up to 20 kN

CX - Extreme

corrosion resistance level ISO 9223

Mizar warranty

5 years warranty

Request information

Richieste Speciali

Invia la tua richiesta compilando il seguente form: ci impegniamo a rispondere fornendoti le informazioni di cui hai bisogno.
I campi contrassegnati da (*) sono obbligatori.

Richieste Speciali

Nome *

Cognome *

E-mail *

Telefono

Azienda

Professione Professione

Indirizzo

Città

CAP

Nazionalità

Richieste aggiuntive

Desidero ricevere supporto su un progetto

Desidero fissare una visita commerciale

Desidero richiedere una quotazione su un materiale specifico

Dettaglia la tua richiesta * *

Acconsento al trattamento dei miei dati personali.

Desidero iscrivermi alla Newsletter Mizar per ricevere comunicazioni su prodotti, servizi ed eventi

Captcha

If you are human, leave this field blank.

Technical description

Inground luminaire, drive-over, suitable for outdoor environments (IP66/IP67), with operating temperature range: -20°C / +50°C. To reduce weight and ensure corrosion resistance, the body is made of aluminum and the round frame of steel. The light source is LED C.O.B powered by constant current, max 500mA, for maximum power of 20W. The high luminous flux makes it ideal for marking pedestrian and driveway paths or illuminating facades and architectural details thanks to the optics with TIR lens. The LED source is recessed for greater visual comfort. Color rendering index CRI > 90. Acus is equipped with IdroSkud® system to protect electronic components from voltage spikes, polarity reversal and water infiltration. There are optionals for anti-glare (honeycomb and louvre) and installation accessories (drive-over outercase).

Lighting data

Source type COB LED
CCT 3000K
CRI > 90
MacAdam (SDCM) 3
Source lumen output (lm) 2082 2082
Luminaire lumen output (lm) 1458 1458

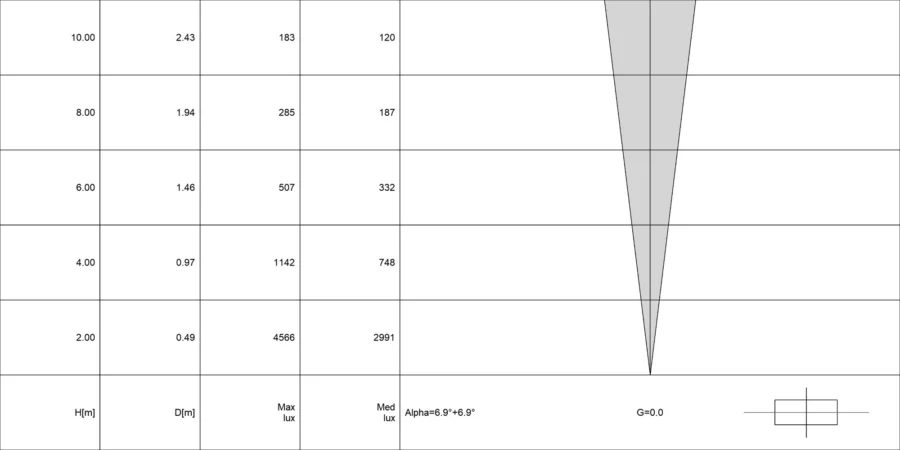

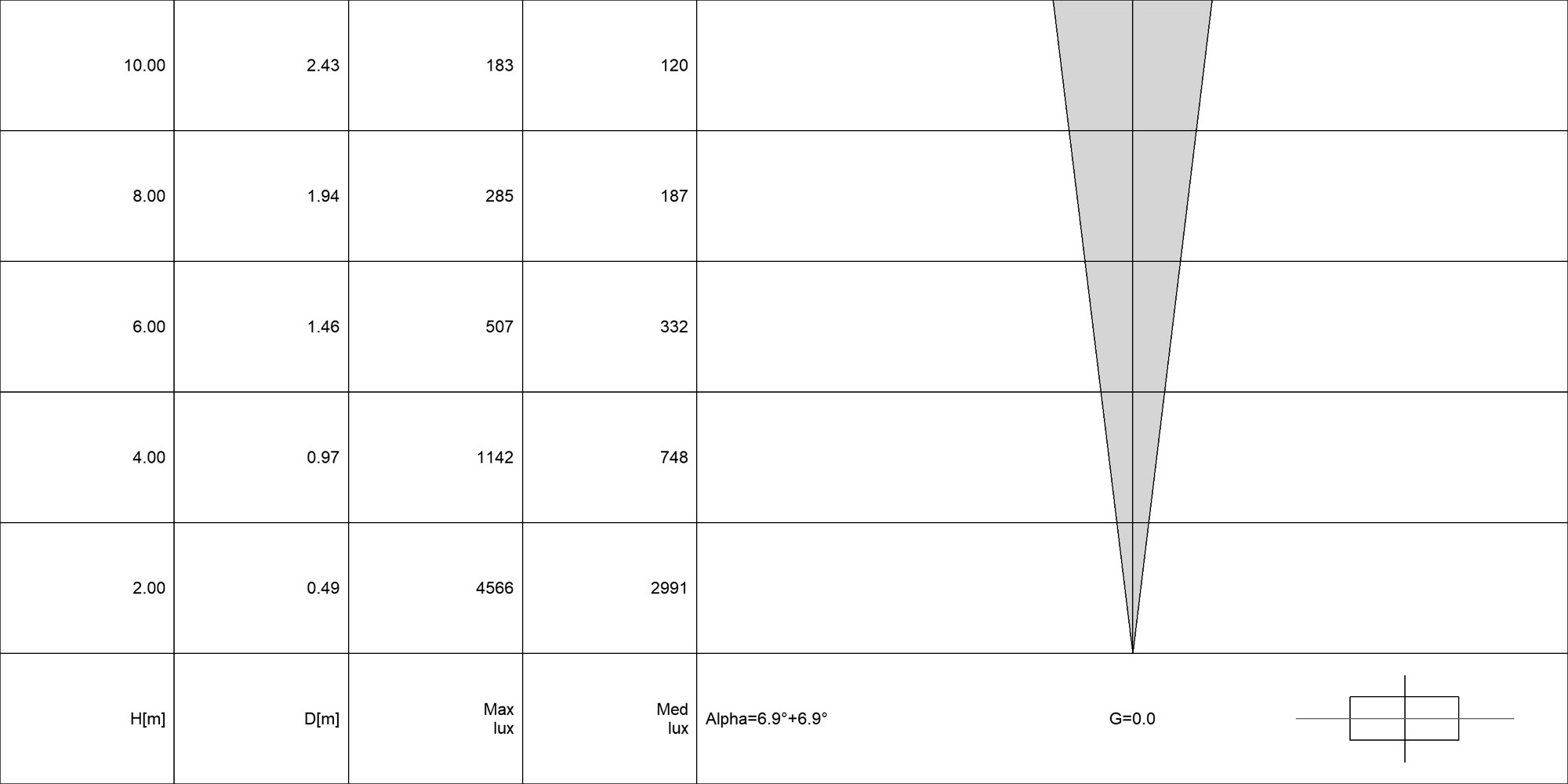

Light emission Narrow
Beam angle 14°
Photobiological risk RG0
ULR 100.00%
BUG Rating B0 U1 G0
CIE Flux Code 0 0 0 0 100
LED lifetime L80 B10 50.000h
Efficiency class This product contains a light source of energy efficiency class (EU2019/2015): F

Mechanical data

Diameter (mm) 140
Height (mm) 106
Weight (g) 1325
IP Rating IP66 / IP67
IK rating IK10
Shape Round
Finishing colour Steel
Frame material Shot peened stainless steel 316L
Body material Anodized aluminum anticorodal 6082
Diffuser material Extraclear tempered glass
Diffuser thickness (mm) 12
Class ISO 9223 CX
Optic type Technopolymer TIR Lens
Optical optional Honeycomb
Maximal working temperature +50° C
Minimal working temperature -20° C
Maximal static load (kN) 20
Walk-over Yes
Driver-over Yes
Maximal surface temperature +60° C
Areas EN 60598-2-13 A1 / A2 / A3 / A4

Electrical data

Nominal power (W) 20
Power supply (input power type) Costant current - 500 mA
Ballast Remote
Insulation class III
Dimmable Yes
Connector type M12 - 5 poles IP67
Power cable length Not pre-wired
Electrical connection Series connection
Idroskud® protection Yes
Inverse polarity protection Yes
Voltage spikes protection Yes
